    FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty

    Ask Lasest Price
    Brand Name : SW
    Model Number : SUNWISE
    Certification : ISO9001,RoHS,CE,ROSH N Type Attenuator
    Price : Negotiable
    Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
    Payment Terms : Western union,T/T,PayPal
    Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
    • Product Details
    • Company Profile

    FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty

    FTTX Fiber Optic Cable 1KM Price FTTH Indoor Drop Cable 3 Years Warranty


    Quick Detail:


    1. SC-SC DX SM Fiber Cable
    2. Low insertion loss, high return loss
    3. User friendly, compact size
    4. PVC or LSZH jacket
    5. PC/UPC polish
    6. Good exchangeability and repeatability
    7. Comply with Telcordia GR-326-CORE specification

    Applications:


    Videos

    Active device termination

    Premise installations

    Telecommunication networks

    Local area networks (LANs)

    Data processing networks

    Wide area networks (WANs)

    Industrial, medical and military

    Fiber count1F/2F/4F
    Attenuation1310nm:≤0.36 1550nm:≤0.22
    Color Of fiberBlue Orange Green Brown
    Fiber TypeG652D/G657A1/G657A2

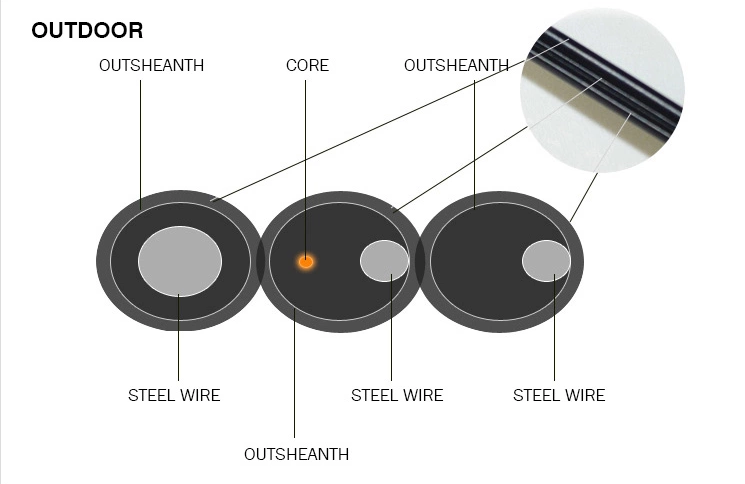

    Strength memberSteel wire/FRP/KFRP
    Outer sheathLSZH Lower smoke zero halogen frame retardant & UV Anti
    Cable Diameter dimensions2.0( Height) × 3.0W ± 0.1 mm(width)
    Operation temperature range-20 ℃ to + 70 ℃
    Installation temperature range-0 ℃ to + 60 ℃
    Transport and storage temperature range-20 ℃ to + 70 ℃
    Tension Load (N)Short term :800N Long term :500N
    Crush Load(N)Long term 1000 N/100mm Short term:2200N/100mm
    Minimal installation bending radius30 x OD
    Minimal operation bending radius15 x OD
    Cable markingThe marking length 1meter apart , as required
