    Lc Sc Apc FTTH Fiber Optic ODF 144 96 72 48 Port Core Cable Odf Distribution Frame

    Ask Lasest Price
    Brand Name : sunwise
    Model Number : ODF-01
    Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
    Certification : ISO9001,RoHS,CE,ROSH N Type Attenuator,Telecom
    Price : Negotiable
    Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
    Payment Terms : Western union,T/T,PayPal
    • Product Details
    • Company Profile

    Lc Sc Apc FTTH Fiber Optic ODF 144 96 72 48 Port Core Cable Odf Distribution Frame

    Lc Sc Apc FTTH Fiber Optic ODF 144 96 72 48 Port Core Cable Odf Distribution Frame


    Types of ODF:

    According to the structure, ODF can mainly be divided into three types, namely wall mount ODF, floor mount ODF and rack mount ODF.

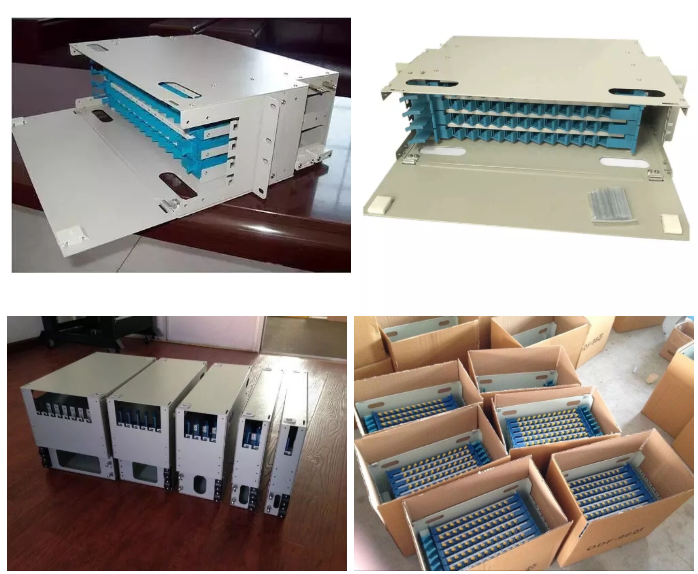

    Rack mount ODF:

    (shown in the right picture) is usually modularity in design with firm structure. It can be installed on the rack with more flexibility according to the fiber optic cable counts and specifications. This kind of optical distribution system is more convenient and can provide more possibilities to the future variations. Most of the rack mount ODF is 19”, which ensures that they can be perfectly installed on to the commonly used standard transmission rack.



    Wall mount ODF:

    (shown in the right picture) usually uses design like a small box which can be installed on the wall and is suitable for fiber distribution with small counts. Floor mount ODF adopts closed structure. It is usually designed with relatively fixed fiber capacity and nice appearance.

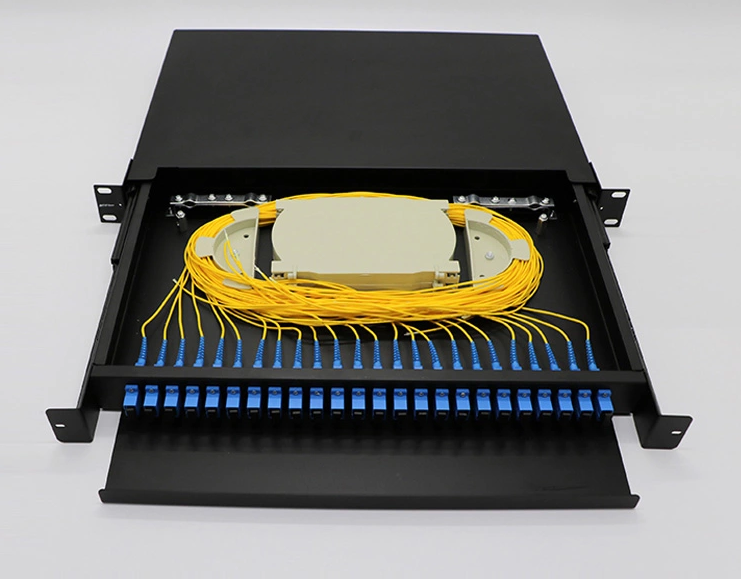

    Rack Mount ODF Unit Introduction:

    ODF is mainly used for cable inlet, grounding and fixing and the splicing between the terminal end and pigtail. Users can select unit or ring flange amount according to their practical needs.
    19" ODF offers flexible cabling access, expandable frame design and comprehensive management. A series of optical distribution frames of 12 fibers, 24 fibers, 48 fibers, 72 fibers,96 fibers and 144 fibers counts type are available.ODFwith pigtails and adapters contain one ODF, adapters and pigtails.


    Mount ODF Unit Application:
    1) Telecommunications subscriber loop
    2) Fiber to the home (FTTH)
    3) LAN/WAN
    4) CATV

    Rack Mount ODF Unit Features:
    1) Standard size, light weight and reasonable structure
    2) Splice tray inside changeable
    3) Can be used in 19'', 23'' standard distribution frame
    4) Suitable for ribbon and single fiber
    5) Various panel plate to fit different adapter interface
    6) Front mark on the plate is easy for identification and operation
    7) 24C, 36C, 48C, 72C optional, with or without fiber optic pigtails and adapters
    8) Easy for management and operation

    Technical Information:
    Type: Cable installation, wall mount
    Size: 40x38x14cm , 30x30x8.5cm, 40.5x38.2x8.5cm
    Capacity: 48 SC, 96 LC
    Connector options: SC, SC/APC, LC, LC/APC, ST, FC

    Operating/Storage Temperature: -20 to +80°C


    Model

    Core Count

    Height

    Dimension(cm)

    Weight(kg)

    ODF-R144

    144

    7U

    49x30.5x31.15

    17.1

    ODF-R96

    96

    5U

    49x30.5x22.25

    11

    ODF-R72

    72

    4U

    49x30.5x17.8

    9

    ODF-R48

    48

    3U

    49x30.5x13.35

    7

    ODF-R36

    36

    2U

    49x30.5x8.9

    5.7

    ODF-R24

    24

    2U

    49x30.5x8.9

    4.6


    Model

    Fiber Quantity

    Dimension(cm)

    Weight(Kg)

    ODF-IW48

    48

    40x38x14

    5.8

    ODF-IW24

    24

    40.5x38.2x8.5

    4.2

    ODF-IW12B

    12

    30x30x8.5

    3
