SM MM FTTH Fiber Optic 1 2 4 Core G657A1 Fiber Optic Drop Cable Light Weight

Sunwise Optical Communication Equipment Co.,Ltd
Contact Now
    Buy cheap SM MM FTTH Fiber Optic 1 2 4 Core G657A1 Fiber Optic Drop Cable Light Weight from wholesalers

    Buy cheap SM MM FTTH Fiber Optic 1 2 4 Core G657A1 Fiber Optic Drop Cable Light Weight from wholesalers
    • Buy cheap SM MM FTTH Fiber Optic 1 2 4 Core G657A1 Fiber Optic Drop Cable Light Weight from wholesalers

    SM MM FTTH Fiber Optic 1 2 4 Core G657A1 Fiber Optic Drop Cable Light Weight

    Ask Lasest Price
    Brand Name : SUNWISE
    Model Number : OEM
    Certification : ISO9001,RoHS,CE,ROSH N Type Attenuator,Telecom
    Price : Negotiable
    Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
    Payment Terms : Western union,T/T,PayPal
    Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
    • Product Details
    • Company Profile

    SM MM FTTH Fiber Optic 1 2 4 Core G657A1 Fiber Optic Drop Cable Light Weight

    SM MM FTTH Fiber Optic 1 2 4 Core G657A1 Fiber Optic Drop Cable Light Weight


    FTTH fiber cable

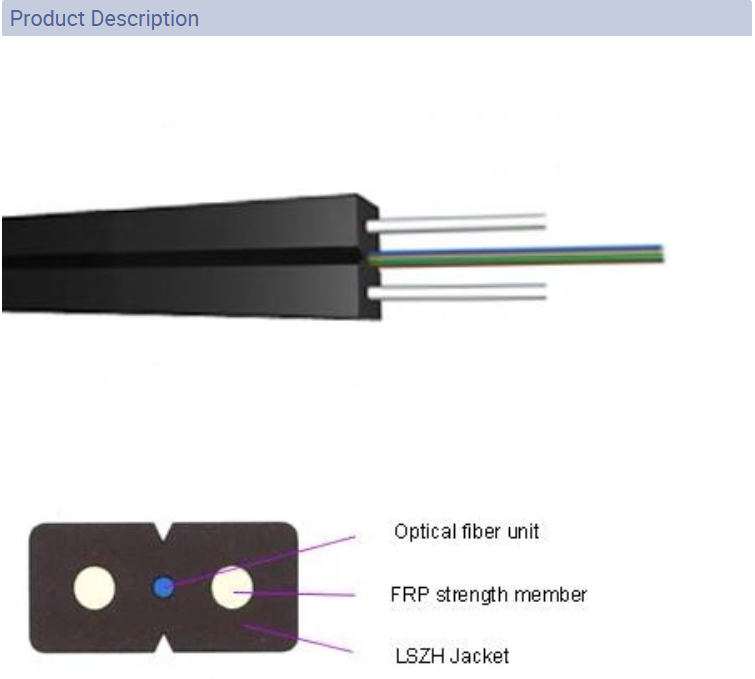

    The optical fiber unit is positioned in the centre. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a black or color LSZH sheath.


    ·Characteristics

    · Special low-bend-sensitivity fiber provides high bandwidth and excellent communication

    transmission property;

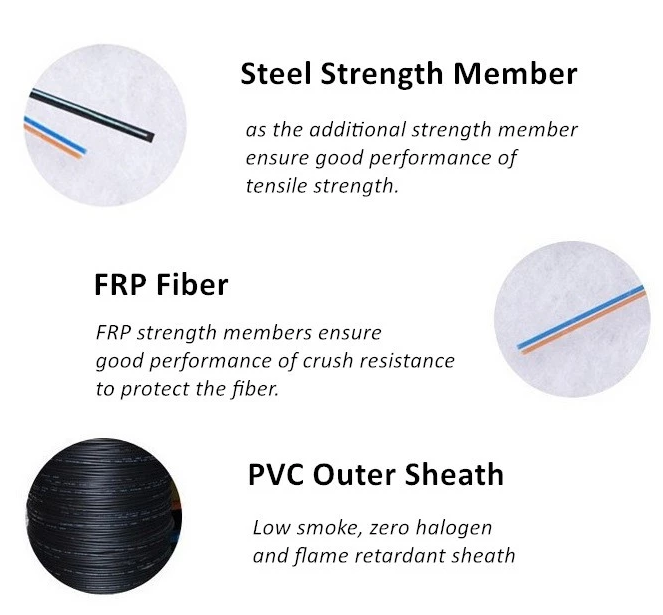

    · Two parallel FRP strength members ensure good performance of crush resistance to protect the

    fiber;

    · Simple structure, light weight and high practicability;

    · Novel flute design, easily strip and splice, simplify the installation and maintenance;

    · Low smoke, zero halogen and flame retardant sheath.



    G.652

    G.655

    50/125μm

    62.5/125μm

    Attenuation (+20℃)

    @850nm



    ≤3.5 dB/km

    ≤3.5 dB/km

    @1300nm



    ≤1.5 dB/km

    ≤1.5 dB/km

    @1310nm

    ≤0.45 dB/km

    ≤0.50 dB/km



    @1550nm

    ≤0.30 dB/km

    ≤0.50dB/km



    Bandwidth (Class A)

    @850nm



    ≥500 MHz·km

    ≥200 MHz·km

    @1300nm



    ≥1000 MHz·km

    ≥600 MHz·km

    Numerical Aperture



    0.200±0.015NA

    0.275±0.015NA

    Cable Cut-off Wavelength λcc

    ≤1260nm

    ≤1480nm



    ·Technical Parameters

    Fiber Count

    Cable Diameter

    mm

    Cable Weight

    kg/km

    Tensile Strength

    Long/Short Term

    N

    Crush Resistance

    Long/Short Term

    N/100mm

    Bending Radius

    Static

    /Dynamic

    mm

    1

    (2.0±0.2)×(3.0±0.2)

    8

    30/60

    300/1000

    15/30

    2

    (2.0±0.2)×(3.4±0.2)

    8.5

    30/60

    300/1000

    15/30

    3

    (2.0±0.2)×(3.8±0.2)

    9

    30/60

    300/1000

    15/30

    4

    (2.0±0.2)×(4.0±0.2)

    10

    30/60

    300/1000

    15/30

    Storage/Operating Temperature : -20℃ to + 60℃
