Brand Name : | SUNWISE |
Model Number : | PC |
Certification : | ISO9001 |
Price : | Negotiable |
Delivery Time : | jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days |
Payment Terms : | Western union,T/T,PayPal |
Supply Ability : | 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment |

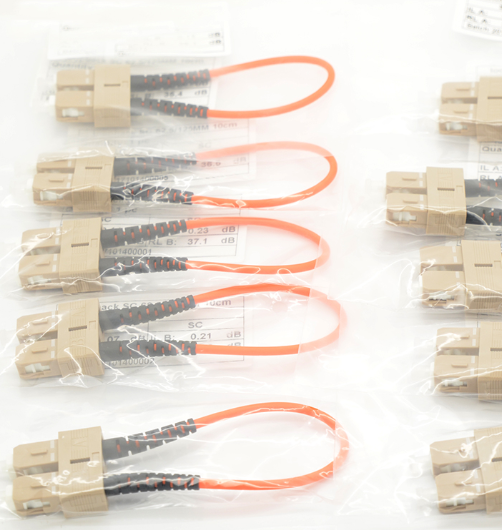

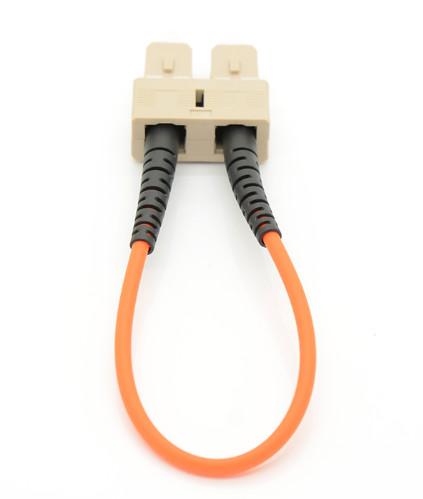

SC Singlemode Fiber Loopback Plug 1000 Times Durability For Telecom Equipment
APPLICATIONS
· CATV
· Active device termination
· Telecommunication networks
· Metro
· Local Area Networks (LANs)
· Data processing networks
· Test equipment
· Precise installations
· Wide Area Networks (WANs)
MPO Breakout cable, a cost-effective alternative to time-consuming
field termination, is designed for high-density fiber patching in
data centers which need space saving and reduce cable management
troubles. It is optimized for 40G QSFP+ SR4 to 10G SFP+ SR, 100G
QSFP SR4 to 25G SFP-25G-SR-S optics direct connection and
high-density data center applications.
· Equipment interconnection
· Device pig-tailling
· Premise networks
· Patch panel applications
· Communications connections
· LoopBack for network components testing
FEATURE
· Ompact design
· Compatible with Fast Ethernet, Fiber Channel, ATM, and Gigabit
Ethernet
· Short wavelength devices
SPECIFFCATIONS | ||
Singlemode | Multimode | |
Insertion loss | PC≤ 0.3dB UPC≤ 0.2dB APC ≤ 0.3dB | PC≤ 0.5dB UPC≤ 0.3dB APC ≤ 0.3dB |
Return loss | UPC≥ 50dB APC ≥ 60dB | - |
Repeatability | ≤ 0.1db | |
Changeability | ≤ 0.2dB | |
Working temperature | -40 to 8o Celsius | |
Durability | 1000 times | |
Sustain tension | ≥ 100N | |
Fiber | 9/125um , 50/125um, 62.5/125um, OM3 etc | |
Diameter | 0.9mm | |
Cores | duplex |
![]() |
