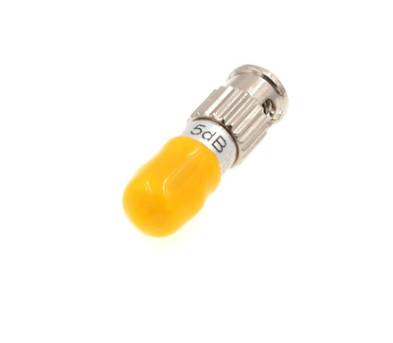

    5dB Fiber Optic Attenuator Single Mode LC UPC For Optical Margin Testing

    Ask Lasest Price
    Brand Name : Sunwise
    Model Number : SC/UPC 5dB
    Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
    Price : Negotiable
    Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
    Payment Terms : Western union,T/T,PayPal
    • Product Details
    • Company Profile

    5dB Fiber Optic Attenuator Single Mode LC UPC For Optical Margin Testing

    5dB Fiber Optic Attenuator Single Mode LC UPC For Optical Margin Testing


    As a optical passive devices, Sunwise attenuators mainly used in fiber optic to debug optical power performance & optical instrument calibration correction & fiber signal attenuation to ensure the optical power in a stable and desired leve in the link without any changes on its original transmission wave.


    Fiber Optic Attenuator

    Fiber Optic Attenuator is one kind of optical passive device which is used to debug the performance of the optical power in the optical communication system,debugging fiber optic instrument calibration correction, optical signal attenuation.And used for the attenuation of the input optical power, avoid optical receiver distortion due to input optical power powerful. The fixed fiber optic attenuator can achieve the dual function of adapter and attenuators.


    Fiber Connector

    SC/UPC

    Ferrule Type

    Zirconia Ceramic

    Connector Gender

    Fixed Male to Female

    Transfer Mode

    Singlemode

    Attenuation

    10dB

    Operating Wavelength(nm)

    1310~1550(SM)

    Attenuation Accuracy

    ±1dB

    Return Loss

    ≥55dB

    Polarization Dependent Loss

    ≤0.2dB

    Max Optical Input Power

    200mW

    Humidity

    95%RH

    Operating Temp Range

    -40~80°C

    Storage Temp Range

    -40~85°C


    Features:


    Fully compatible with LC fiber optic connectorsPrecise attenuation valuesIndustry standard attenuation levelsLow PDL and insertion lossPrecision polishing for reduced back reflectionHighly Reliable Physical Contact ConnectorsCompartmentalized case provides safe component storage and simple organizationSmall, durable case for easy portabilityRoHS compliant

    Application:
    Fiber optical telecommunication system
    Fiber optical CATV
    Fiber optical sensor
    Testing equipment

    5dB Fiber Optic Attenuator Single Mode LC UPC For Optical Margin Testing


    FAQ

    Q1. Do you provide sample service?
    A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

    Q2. What about the MOQ?
    A: Most products have a minimum order quantity, but some stocks can accept small orders.

    Q3. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT international express service. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q4: How long is the guarantee of the product?
    A: According to the type of product,We offer 1-3 years warranty to our formal products.

    Q5: What about delivery time?
    A: We need 1-3 days to handling the sample, and 5-15 days to process our normal goods.
