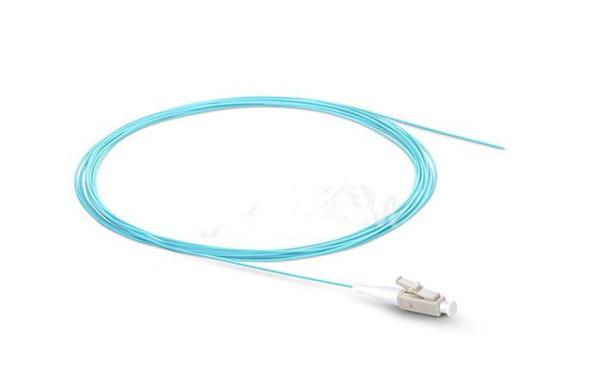

    OM3 OM4 Fiber Optic Pigtail Cord LC UPC Simplex Single Mode Fiber Jumpers

    Ask Lasest Price
    Brand Name : Sunwise
    Model Number : LCUPC
    Price : Negotiable
    Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
    Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
    Payment Terms : Western union,T/T,PayPal
    • Product Details
    • Company Profile

    OM3 OM4 Fiber Optic Pigtail Cord LC UPC Simplex Single Mode Fiber Jumpers

    OM3 OM4 Fiber Optic Pigtail Cord LC UPC Simplex Single Mode Fiber Jumpers


    Fiber optic pigtails provide a fast way to make communication devices in the field. They are designed, manufactured and tested according to protocol and performance dictated by the industrial standards, which will meet your most stringent mechanical and performance specifications.
    Please note: E2000 is an LSH connector with a dust-proof cover.


    Connector Type

    LC/SC/FC/ST/LSH

    Polish Type

    UPC

    Fiber Mode

    OM3/OM4

    Wavelength

    850/1300 nm

    Fiber Count

    Simplex

    Cable Jacket

    PVC/LSZH/OFNP

    Fiber Grade

    G.651 (OM3)/Bend Insensitive (OM4)

    Minimum Bend Radius

    15 mm/7.5 mm

    Cable Diameter

    0.9/2.0 mm

    Jacket Color

    Qqua

    Insertion Loss

    ≤0.3 dB

    Return Loss

    ≥50 dB

    Attenuation at 850nm

    3.0 dB/km

    Attenuation at 1300nm

    1.0 dB/km

    Operating Temperature

    -40~75°C

    Storage Temperature

    -45~85°C



    Features :
    * L ow insertion loss
    * Low reture loss
    * Varours Connector Types available
    * Easy instalation
    * Environmentally stable

    Application:
    * Fiber Optic telecommunications
    * Lan(Local Area network)
    * FTTH (Fiber to the home)
    * CATV & CCTV

    * High Speed transmission systems

    * Fiber optic sensing


    Our Services
    1. Professional manufacturer, 100% tested.
    2. Customers solutions in days, not weeks.
    3. Warmly services with careful attentions.
    4. Can provide your specific inquiry within 24 hours.
    5. Save much costs, bring more benefit for customer to expand business.
    6. We have been----years experience in this field. We are the prefessional supplier that you can trust.

    FAQ
    1. Are you the real factory?
    Yes,we are the real factory.

    2. What is your main products?
    Optical patch cords SC/LC/FC/ST; MTP/MPO optical patch cord.SC/LC/F adapters,attenuators.
    Outdoor fiber optic cables; indoor fiber optic cables.
    3. Payment
    For large orders: T/T, L/C
    For small orders: T/T,Western Union and Paypal are acceptable.
    4. Do you have certificate for raw material?
    We build long-term relationship cooperation with qualified ISO9001, ROHS raw material suppliers
