Full Compatible QSFP+ Direct Attach Cable 40 Gbase Hot Plug Swappable

Sunwise Optical Communication Equipment Co.,Ltd
Contact Now
    Buy cheap Full Compatible QSFP+ Direct Attach Cable 40 Gbase Hot Plug Swappable from wholesalers

    Buy cheap Full Compatible QSFP+ Direct Attach Cable 40 Gbase Hot Plug Swappable from wholesalers
    • Buy cheap Full Compatible QSFP+ Direct Attach Cable 40 Gbase Hot Plug Swappable from wholesalers

    Full Compatible QSFP+ Direct Attach Cable 40 Gbase Hot Plug Swappable

    Ask Lasest Price
    Brand Name : Topnet System OR OEM
    Model Number : 40G QSFP+ DAC
    Certification : CE/FCC/RoHS/TUV/UL
    Price : Negotiable
    Payment Terms : Western union,T/T,PayPal
    Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
    Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
    • Product Details
    • Company Profile

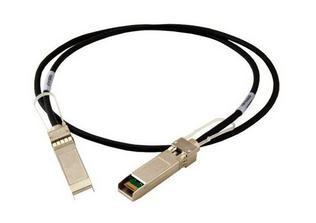

    Full Compatible QSFP+ Direct Attach Cable 40 Gbase Hot Plug Swappable

    Full Compatible QSFP+ Direct Attach Cable 40 Gbase Hot Plug Swappable


    Product Name:40G QSFP+ DACDatarate:40gbase
    Distance:Up To 5M For PassiveVoltage Supply:3.3v
    Connector:QSFP+Temp:0~70

    40 Gigabit Ethernet Qsfp+ Direct Attach Passive Copper Cable Assembly 3m Length


    Overview

    QSFP+ copper direct-attach cables are suitable for very short distances and offer a highly cost-effective way to establish a 40-Gigabit link between QSFP+ ports of QSFP+ switches within racks and across adjacent racks. These cables are used for 40GbE and Infniband standards to maximize performance.


    Features of QSFP+ Cable Assemblies


    • Hot-plug swappable
    • 3X Port Density over SFP / SFP+
    • Optimized NEXT & Return Loss
    • Low cost and low power solution compared to fiber optical cable
    • Compliant with QSFP+ MSA and SFF-8436
    • Compliant with IEEE 802.3ba/ Infiniband QDR specifications
    • Enhanced EMI/EMC performance
    • Supports serial ID functionality thru EEPROM
    • Passive cable assembly supports distances up to 7 meters
    • 30AWG to 24AWG cable sizes available
    • RoHS compliant and Halogen-Free option available

    Specification

    Part NumberProduct DescriptionAWG
    40G QSFP+ Copper Direct-attached Cable
    QSFP-40G-DAC-05-P0.5M QSFP+ to QSFP+ Twinaxial copper Cable Passive30
    QSFP-40G-DAC-1M-P1M QSFP+ to QSFP+ Twinaxial copper Cable Passive30
    QSFP-40G-DAC-3M-P3M QSFP+ to QSFP+ Twinaxial copper Cable Passive30
    QSFP-40G-DAC-5M-P5M QSFP+ to QSFP+ Twinaxial copper Cable Passive28

    Competitive advantage
    1. Excellent quality and 3 years warranty
    2. Competitive pricing
    3. Full compatible (CISCO/HP/Extreme/Juniper/H3C…)
    4. OEM/ODM Customized label
    5. Keep stock,Fast delivery


    FAQ

    Q1. Do you provide sample service?
    A: Yes, we provide free or low price samples for you to test and check quality. Mixed samples are acceptable.

    Q2. What about the MOQ?
    A: Most products have a minimum order quantity, but some stocks can accept small orders.

    Q3. How do you ship the goods and how long does it take to arrive?
    A: We usually ship by DHL, UPS, FedEx or TNT international express service. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

    Q4: How long is the guarantee of the product?
    A: According to the type of product,We offer 1-3 years warranty to our formal products.

    Q5: What about delivery time?
    A: We need 1-3 days to handling the sample, and 5-15 days to process our normal goods.
