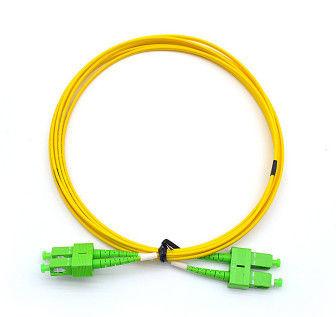

    High Return Loss Fiber Optic Patch Cable 2.0mm LSZH For Local Area Network

    Ask Lasest Price
    Brand Name : SUNWISE
    Model Number : SC/APC
    Supply Ability : 1 million km / month for fiber optic cables; 200,000 pcs / month for patch cords;100,000 PCS / month for equipment
    Certification : ISO9001
    Price : Negotiable
    Delivery Time : jumper 3 ~ 7 days; fiber optic cable and equipment 7 ~ 15 days
    Payment Terms : Western union,T/T,PayPal
    • Product Details
    • Company Profile

    High Return Loss Fiber Optic Patch Cable 2.0mm LSZH For Local Area Network

    High Return Loss Fiber Optic Patch Cable 2.0mm LSZH For Local Area Network


    MPO trunk cable, a cost-effective alternative to time-consuming field termination, is designed for high-density fiber patching in data centers which need space saving and reduce cable management troubles. It is optimized for 10/40/100G high-density data center applications.


    Product Specifications


    Connector A

    SC APC

    Connector B

    SCAPC

    Fiber Mode

    OS2 9/125 μm SM

    Wavelength

    1310/1550 nm

    Polish Type

    APC to APC

    Minimum Bend Radius

    10 mm

    Insertion Loss

    0.2 dB Max. (0.15 dB Typ.)

    Return Loss

    ≥ 60 dB

    Attenuation at 1310 nm

    ≤ 0.32 dB/km

    Attenuation at 1550 nm

    ≤ 0.18 dB/km

    Jacket OD

    3.0 mm

    Cable Jacket

    LSZH

    Installation Tensile Load

    100 N

    Long-Term Tensile Load

    50 N

    Storage Temperature

    -40°C to 85°C

    Operating Temperature

    -10°C to 70°C


    Features

    (1) High return loss;

    (2) Low insertion loss;

    (3) Good repeatability and and exchangeability;

    (4) Excellent Polished and 100% tested;


    Applications

    Local Area Network (LAN)

    Data communication network

    Telecommunication optical transmission network

    Optical access network(OAN)

    Active device termination

    Fiber optics data transmission(FODT)

    Test Equipment

    CATV


    FAQ

    Q1. About the price?
    Re. We usually quote within 12 hours after we confirm the technical data of your products.

    Q2. What's the payment method?
    Re. We accept L/C,T/T,Western Union,MoneyGram,PayPal etc.

    Q3. What are your terms of payment?
    Re. 30% in advance,and 70% before shipment

    Q4. How to ship the items to me?
    Re. Courier(DHL,TNT,FEDEX,UPS,EMS),Airfreight,Ocean Ship are available.

    Q5. How long is your delivery time?
    Re. The general delivery time is 5-7 days after order confirmed,it depends on the order quantity.

    Q6. Can you send me a free sample?
    Re. Yes,We are willing to send free sample,if you would like to pay the shipping costs.

    Q7. Do you accept OEM or ODM?
    Re. Yes,we're factory. any your customized requirements we can do our best to help you realize.
