    LSZH Gpon Epon G657A2 1x64 PLC Fiber Optic Splitter

    Ask Lasest Price
    Brand Name : SUNWISE
    Model Number : PLCS1224
    Certification : CE/TUV/ISO9001
    • Product Details
    • Company Profile

    LSZH Gpon Epon G657A2 1x64 PLC Fiber Optic Splitter

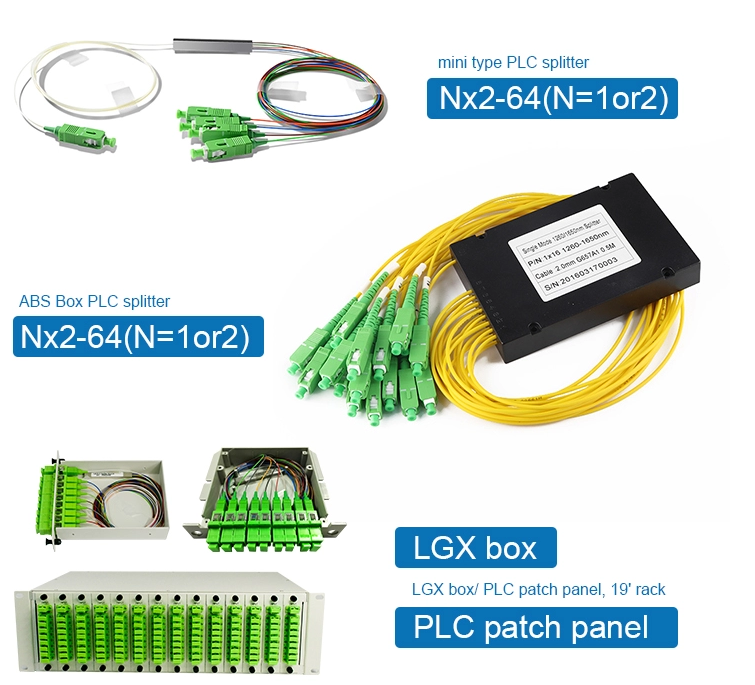

    1x2 1x4 1x8 1x16 1x32 1x64 Gpon Epon PLC fiber optic splitter


    APPLICATION

    FTTx Systems
    Digital, hybrid and AM-Video systems
    LAN,WAN and Metro Networks
    CATV systems
    Other applications in fiber optic systems


    FEATURES

    Low Insertion loss and Low PDL
    Uniform power splitting
    High reliability
    Excellent environmental stability
    Compact size and various package


    Parameter/Type
    Nx2(N=1or2)
    Nx4(N=1or2)
    Nx8(N=1or2)
    Nx16(N=1or2)
    Nx32(N=1or2)
    Nx64(N=1or2)
    Fiber
    9/125 um SMF-28e or customer appoint
    Operating Wavelength(nm)
    1260~1650(nm)
    Insertion Loss
    ≤3.9dB
    ≤7.1dB
    ≤10.3dB
    ≤13.3dB
    ≤16.3dB
    ≤19.8dB
    Loss Uniformity(dB)
    ≤0.6dB
    ≤0.6dB
    ≤0.8dB
    ≤1.2dB
    ≤1.5dB
    ≤2.0dB
    Polariation Dependent Loss
    ≤0.15dB
    ≤0.15dB
    ≤0.2dB
    ≤0.2dB
    ≤0.2dB
    ≤0.3dB
    Return Loss
    UPC≥50dB APC≥60dB
    Directivity
    ≥55dB
    Working Temperature(℃)
    -40°C to +85°C
