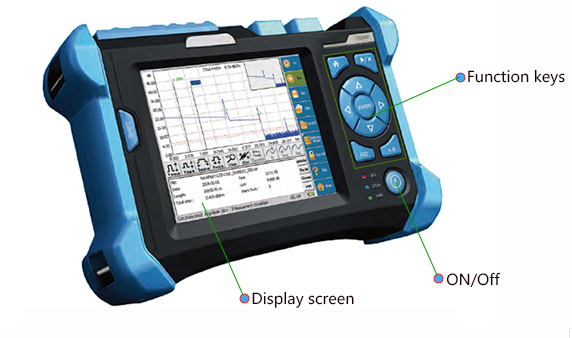

♥ Large touch screen + shortcut keys, easy to operate.

♥ Large capacity polymer lithium battery with superlong working hours.

♥ Intellegient tesing, simple use and powerful function.

♥ Media of memory card+SD card with superlarge storage capacity of traces.

♥ Able to meet FTTX testing needs.

♥ Several wavelength can be choosen.

♥ Solid casing design,dustproof and shockproof.

OTDR Visible Failure Orientation VFL

Remarks:

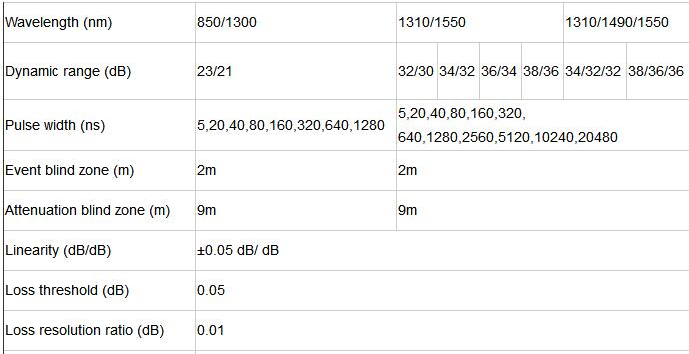

♥ The technical specification describes the ensured performance of the instrument when using typical PC model connector to measure. Without considering the uncertainty caused by optical fiber

refraactivity.

♥ Dynamic range is the data measured under the condition of the maximum pulse width and 3

minutes of average time. Dynamic range is the data measured under the condition of 180Km/2480

ns/3min.

♥ Measuring conditions of blind zone : reflection event is within 4 Km, reflection strength < -45dB.

Measured by the minimum pulse width.

♥ Dynamic range measured when there is filter.

♥ Dynamic range measured when there is no filter.
